| Brand Name: | Tendars |
| Model Number: | Big tent |
| MOQ: | 25 square meters |
| Price: | Reconsideration |
| Packaging Details: | 1, The aluminium frame structure packed into the bubble film 2, the pvc fabric roof cover and sidewalls are packed into the PVC fabric carry bag; 3, Hardware packed into the box. |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
1)Tent Clear Span Width: 10m
2)Eave Height: 2.5m
3)Ridge Height: 4.5m
4)Roof Pitch: 18°
5)Bay Distance: 5m
6)Longest Component: 4.32m
7)Minimum Tent Length: 10m
8)Maximum Tent Length: Unlimited in 5m increments
9)Eave connection type: Internal Galvanised Steel Insert
10)Main profile size: 120*68 * 3mm
|
Width |
10m |
Length |
20m |
|
Eave Height |
2.5m |
Ridge Height |
4.5m |
|
Frame material |
1. High pressed extrued aluminum alloy 6061-T6(13HW) |
||
|
2. Sizes of cross section of main profile:: 84 x 48 x 3mm, 120 x 48 x 3mm, 120 x 68 x 3mm, 166 x 88 x 3mm, 203 x 112 x 4mm, 255 x 112 x 4.5mm, 300 x 125 x 5mm, 300 x 125 x 8mm |
|||
|
3. Durable, lightweight, easy set up, not easy to rust and distort |
|||
|
4. Eave connection: hot-dip galvanised steel insert. |
|||
|
Mainprofile of parking tent |
84 x 48 x 3mm |
||
|
Steel parts & Connection |
Inset joint, hot-dipped galvanized, Passed 144 hour of salt spraying test |
||
|
Fabric material |
roof cover: 850g/sqm blackout Polyester with double side PVC coated, Waterproof, Flame-retardant, Anti-UV aging |
||
|
High quality spread coat PVC roof panels with PVDF lacquer coating for optimum cleanability. |
|||
|
⒙ igh frequency welded for optimum strength, durability, look and quality. |
|||
|
⒙ alls are a 2-piece design with centre lacing. |
|||
|
⒙ ides slide into keder grooves in each leg. They are suspended on unique new nylon gliders that engage in a keder |
|||
|
groove on the underside of each eave purlin. |
|||
|
⒙ alls are secured at the bottom by a base rail for maximum security. |
|||
|
⒙ wide range of sidewall options are available including Plain, Clear, Panorama, Cottage and French Window styles. |
|||
|
Option Accessories |
Grass anchors, lining, light, Glass door, glass wall, wood flooring, slide glass door and so on |
||
|
Loading Specification of Luxury marquee wedding party tent with ceilings curtains and partition |
|||
|
Wind Load |
Max. to 100km/h to 120km/h |
||
|
Snow loading |
0.5kn/square meter |
||
|
Working temp |
-35C to +75C |
||
|
Width (m) *Length (m) |
Eave height (m) |
Ridge height (m) |
Aluminum main profile |
|
8 *10 |
2.5 |
4.1 |
120 *68 *3mm |
|
9 *10 |
2.5 |
4.3 |
120 *68 *3mm |
|
10 *10 |
2.5 |
4.5 |
120 *68 *3mm |
|
12 *10 |
2.5 |
4.7 |
120 *68 *3mm |
|
Width (m) *Length(m) |
Eave height (m) |
Ridge height (m) |
Aluminum main profile |
|
10 *10 |
4 |
5.8 |
166 *88 *3mm |
|
12 *10 |
4 |
6 |
166 *88 *3mm |
|
15 *10 |
4 |
6.5 |
166 *88 *3mm |
|
18 *10 |
4 |
7 |
166 *88 *3mm |

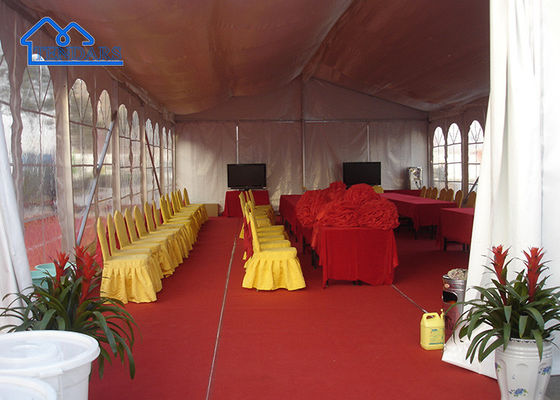

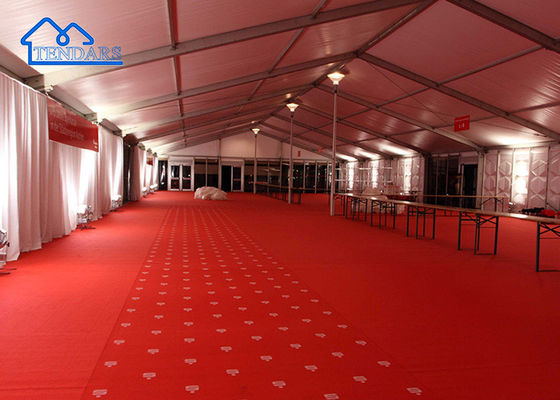

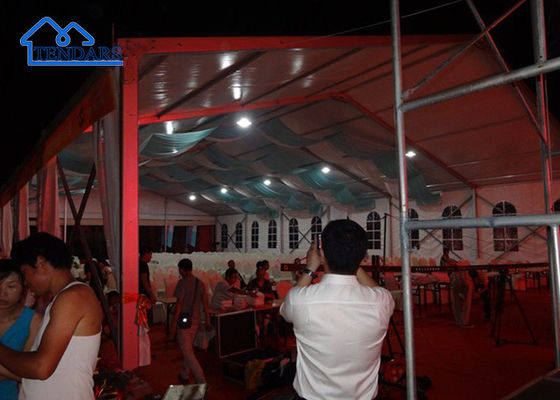

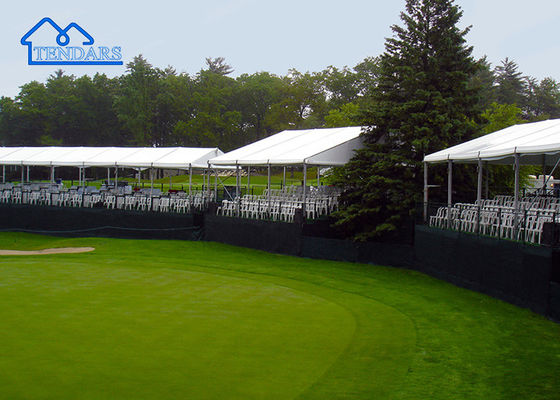

1. Wedding ceremony or banquets
2. Garden party and small gathering
3. Outdoor meeting, advertising, promotion
4. Fetes ( concerts, beer festivals, gourmet food festivals)
5. Entrance canopy or shelter, attached to a big marquee
6. Exhibition and trade fairs ( promotion, market fairs, launching)
7. Arenas, walkways, garaging, storage, stabling, open/ close ceremony, reception.
1. Roof Covers: Transparent, Translucent, block out PVC covers;
2. Sidewall: Soft PVC,Glass, ABS, Steel sheet, Sandwich panel;
3. Doors: Glass door, Sliding door, Rolling door, Double-wing door, Aluminum;
4. Lining Decoration: Roof lining, Wall Curtain, Lighting;
5. Flooring,Rain gutter,Ventilation system, Extended Ramps;
6. Transport and storage rack for doors
Ground anchor(steel peg): For soft ground surface like, earth, sand, lawn, etc.
Inflatable screw: For hard surface like, cement, stone, or prefab concrete cubic, etc.
Weight plate: For protective ground surface like marble, ceramic & tiles, asphalt, brick, etc.
|
|
