| Brand Name: | Tendars |
| Model Number: | Big tent |
| MOQ: | 25 square meters |
| Price: | Reconsideration |
| Packaging Details: | 1, The aluminium frame structure packed into the bubble film 2, the pvc fabric roof cover and sidewalls are packed into the PVC fabric carry bag; 3, Hardware packed into the box. |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |

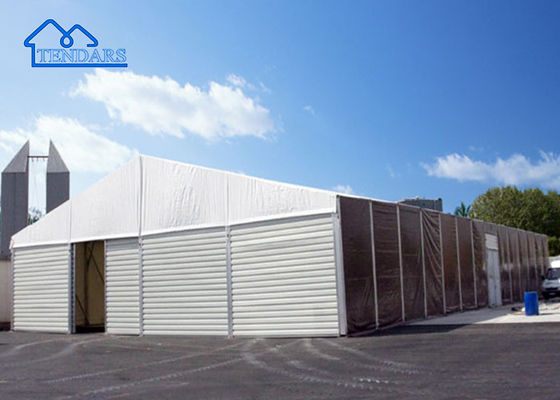

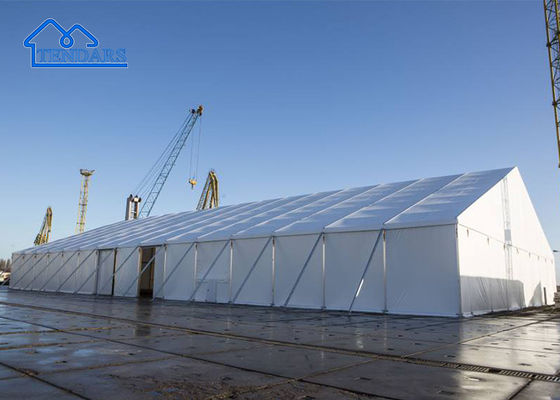

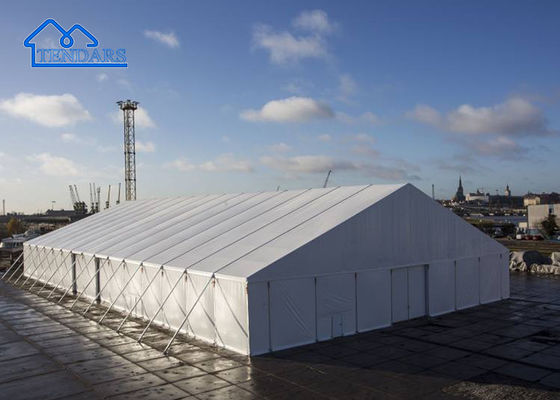

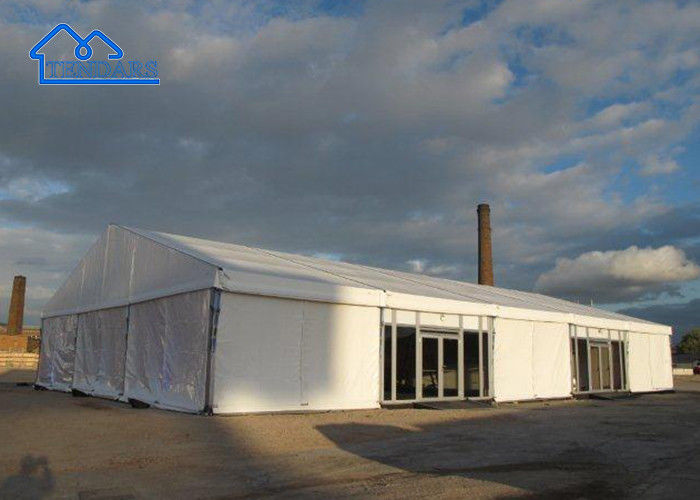

Unit combination style structure. The span is from 3meters to 60 meters, such as 6m, 8m,9m 10m,12m, 15m, 18m, and the length is unlimited, 3m/5m bay. Size can be customized.
|
Wide |
Bay Distance |
Side Height |
Ridge Height |
Roof Pitch |
Wind Load |
Frame Profile Size |
|
6m |
3m |
2.5m |
3.7m |
18 |
80-100km/h |
84 x 48 x 3mm |
|
8m |
3m/5m |
2.5m |
4.1m |
18 |
80-100km/h |
120 x 68 x 3mm |
|
9m |
3m/5m |
2.5m |
4.3m |
18 |
80-100km/h |
120 x 68 x 3mm |
|
10m |
3m/5m |
2.5m |
4.5m |
18 |
80-100km/h |
120 x 68 x 3mm |
|
Wide |
Bay Distance |
Side Height |
Ridge Height |
Roof Pitch |
Wind Load |
Frame Profile Size |
|
12m |
3m/5m |
4m |
6m |
18 |
80-100km/h |
166x88x3mm |
|
15m |
3m/5m |
4m |
6.5m |
18 |
80-100km/h |
166x88x3mm |
|
18m |
3m/5m |
4m |
7m |
18 |
80-100km/h |
166x88x3mm |
|
Wide |
Bay Distance |
Side Height |
Ridge Height |
Roof Pitch |
Wind Load |
Frame Profile Size |
|
20m |
5m |
4m |
7.2m |
18 |
80-100km/h |
200x115x4mm |
|
25m |
5m |
4m |
8.0m |
18 |
80-100km/h |
250x115x4mm |
|
30m |
5m |
4m |
8.8m |
18 |
80-100km/h |
300x125x4mm |
|
Wide |
Bay Distance |
Side Height |
Ridge Height |
Roof Pitch |
Wind Load |
Frame Profile Size |
|
40m |
5m |
4-5m |
9.8m |
18 |
80-100km/h |
300x125x4mm |
|
50m |
5m |
4-5m |
11.4m |
18 |
80-100km/h |
300x125x5mm |
|
70m |
5m |
4-5m |
15.3m |
18 |
80-100km/h |
400x140x6mm |
|
Frame material |
1. High pressed extrued aluminum alloy 6061-T6(13HW) |
||
|
2. Sizes of cross section of main profile:: 84 x 48 x 3mm, 120 x 48 x 3mm, 120 x 68 x 3mm, 166 x 88 x 3mm, 203 x 112 x 4mm, 255 x 112 x 4.5mm, 300 x 125 x 5mm, 300 x 125 x 8mm |
|||
|
3. Durable, lightweight, easy set up, not easy to rust and distort |
|||
|
4. Eave connection: hot-dip galvanised steel insert. |
|||
|
Steel parts & Connection |
Inset joint, hot-dipped galvanized, Passed 144 hour of salt spraying test |
||
|
Fabric material |
roof cover: 850g/sqm blackout Polyester with double side PVC coated, Waterproof, Flame-retardant, Anti-UV aging |
||
|
High quality spread coat PVC roof panels with PVDF lacquer coating for optimum cleanability. |
|||
|
• High frequency welded for optimum strength, durability, look and quality. |
|||
|
• Walls are a 2-piece design with centre lacing. |
|||
|
• Sides slide into keder grooves in each leg. They are suspended on unique new nylon gliders that engage in a keder |
|||
|
groove on the underside of each eave purlin. |
|||
|
• Walls are secured at the bottom by a base rail for maximum security. |
|||
|
• A wide range of sidewall options are available including Plain, Clear, Panorama, Cottage and French Window styles. |
|||
|
Option Accessories |
Grass anchors, lining, light, Glass door, glass wall, wood flooring, slide glass door and so on |
||
|
Loading Specification of Luxury marquee wedding party tent with ceilings curtains and partition |
|||
|
Wind Load |
Max. to 100km/h to 120km/h |
||
|
Snow loading |
0.5kn/square meter |
||
|
Working temp |
-35C to +75C |
||
1. Wedding ceremony or banquets
2. Garden party and small gathering
3. Outdoor meeting, advertising, promotion
4. Fetes ( concerts, beer festivals, gourmet food festivals)
5. Entrance canopy or shelter, attached to a big marquee
6. Exhibition and trade fairs ( promotion, market fairs, launching)
7. Arenas, walkways, garaging, storage, stabling, open/ close ceremony, reception.
Fixing Methods
Ground anchor(steel peg): For soft ground surface like, earth, sand, lawn, etc.
Inflatable screw: For hard surface like, cement, stone, or prefab concrete cubic, etc.
Weight plate: For protective ground surface like marble, ceramic & tiles, asphalt, brick, etc.
1. Any interior pole in the Tent? How to hide them?
NO pole inside. 100% use of the space. Satin liner and curtain to hide the frame are available.
2.Tent for 1000 people,what size do I need?
For wedding tent with talbes and chairs,1 people -1.5sqm.
For seater tent,1 pepople -1.2sqm.
So 1000 people with tables need 1500sqm.
3.Any LOGO?
Yes, any logo is available for you.
4.Hot or Cold in our country, any Air Conditioner?
Yes, we have integral air conditioner espacially for tent event-5HP(50sqm),10HP(100sqm) and 30HP(sqm).
|
