| Brand Name: | Tendars |
| Model Number: | Big tent |
| MOQ: | 25 square meters |
| Price: | Reconsideration |
| Packaging Details: | 1, The aluminium frame structure packed into the bubble film 2, the pvc fabric roof cover and sidewalls are packed into the PVC fabric carry bag; 3, Hardware packed into the box. |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Main Frame |
Clear-span Width: From 3m to 60m |
||
| Structure Material |
Hard Pressed Extruded Aluminum Alloy 6061-T6& 6082-T6 |
||
| Cover material |
Density: 650g/sqm, 750g/sqm, 850g/sqm |
||
|
Material: Both sides PVC coated polyester fabric |
|||
|
Features: Waterproof; Flame retardant; UV resistant; |
|||
| Sidewall | PVC Wall, Glass Wall, ABS Wall, Sandwich Wall | ||
| Wind Load | 120km/h | ||
| Temperature Index | -30 Degree Celsius to +70 Degree Celsius | ||
| Life Time | Aluminum frame more than 15 Years. PVC fabric 8 years |
| Tent Size(m) | Side Height(m) | Frame Size(mm) | Floor Area(㎡) | Capacity (Events) |
| 10x20 | 3 | 120x48x3 | 200 | 150-200 Peoples |
| 15x20 | 3 | 166x88x3 | 300 | 250-300 Peoples |
| 15x30 | 4 | 166x88x3 | 450 | 380-450 Peoples |
| 20x30 | 4 | 112x203x4 | 600 | 500-600 Peoples |
| 30x50 | 4 | 112x203x4 | 1500 | 1200-1500 Peoples |
Step 1
To build the site lofting and fixed base according to the specifications of the tent. All the bases must be on a horizontal line, and when the ground is uneven, fill it out first.
Step2
To place the materials in the corresponding position according to the connection relationship and construction position of each part.
Step3
Assemble the frame
1. Ridge connecting Angle and diagonal beam installation
2. Bearing column and diagonal beam installation
Step4
The vertical frame is correctly and safely connected to the inclined beam by the crane through the traction cable.
Step5
The cross strut is first connected to the base, and locked with the cylindrical pin and the cotter pin.
Step6
To install the ridge square pipe. Hang one end of the ridge square pipe with a curved hook into the corresponding U-buckle of the frame, and the other end is the same.
Step7
The roof square pipe installation
Step8
Install the gable center column and side column
Step9
Install the left and right suspension tubes
Step10
Adjust the position and fixing of the center and side column base
Step11
Roof cable installation
Step12
Tarpaulin installation
Step13
Through the side wall, gable tarpaulin under the tension rod
Step14
Complete the tent installation after a comprehensive inspection
Before installation, check whether all components are in good condition. During installation, keep non-construction personnel away from the installation site.
1. Measure the site in advance before using the tent, determine the specifications of the tent to be used,
2. The tent needs to be assembled by professionals, and non-professionals must not assemble and build the tent by themselves,
3. Determine the fixing method of the tent according to the construction site (expansion screw fixing, ground nail fixing, bearing plate attaching weight fixing)

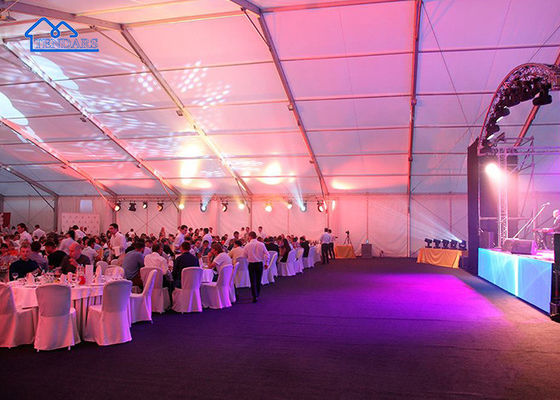

Weddings: Big party tents are often used for wedding receptions, providing a customizable space for dining, dancing, and celebrating with guests.
Corporate Events: Tents are ideal for conferences, seminars, product launches, and team-building activities, offering a unique and adaptable event space.
Festivals and Fairs: Tents are used for food stalls, merchandise booths, entertainment stages, and shelter for attendees at outdoor festivals and fairs.
Parties and Celebrations: Whether it's a birthday party, anniversary celebration, or family reunion, tents provide a festive atmosphere and protection from the elements.
Concerts and Performances: Large tents serve as stages and audience areas for concerts, live performances, and theater productions.

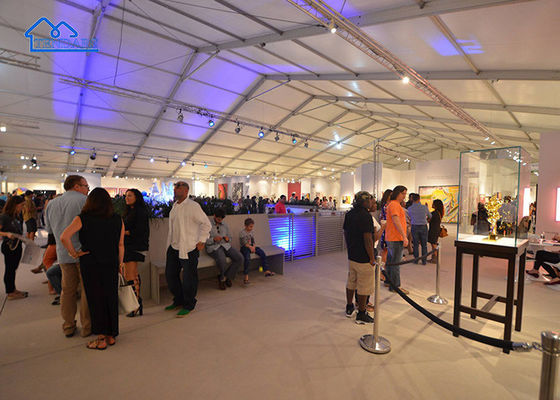

Trade Shows and Exhibitions: Tents are utilized for showcasing products and services, offering a dedicated space for exhibitors to interact with attendees.
Sporting Events: Tents provide shelter for spectators, athletes, and organizers during sporting events, marathons, and tournaments.
Charity Events: Tents are commonly used for fundraising events, auctions, and charity galas, creating an elegant setting for donors and attendees.
Religious Gatherings: Tents can accommodate large congregations for religious services, retreats, and spiritual gatherings.
Outdoor Dinners: Tents create a charming ambiance for outdoor dinner parties, wine tastings, and other culinary events.
Camping and Glamping: In the realm of recreational camping, "glamping" (glamorous camping) involves using large tents with comfortable amenities for a more luxurious camping experience.
Ceremonies: Tents serve as ceremony spaces for events such as awards ceremonies, graduation ceremonies, and more.
Art and Craft Shows: Artists and craftsmen often use tents to display and sell their creations at art fairs and craft shows.
Film and Photo Shoots: Tents can be used as temporary studios or green rooms for film and photo shoots.
Emergency Shelters: In times of disaster or emergency, tents can serve as temporary shelters for displaced individuals and families.
Seasonal Markets: Tents house vendors and stalls at holiday markets, farmers' markets, and other seasonal events.
Fashion Shows: Tents are used as runway spaces for fashion shows and modeling events.
Educational and Workshop Events: Tents provide workshop space for educational seminars, classes, and training events.
|
